Restoration Project

Yamaha 250 Big Bear Scrambler

Presented by cyclelist
Pictures

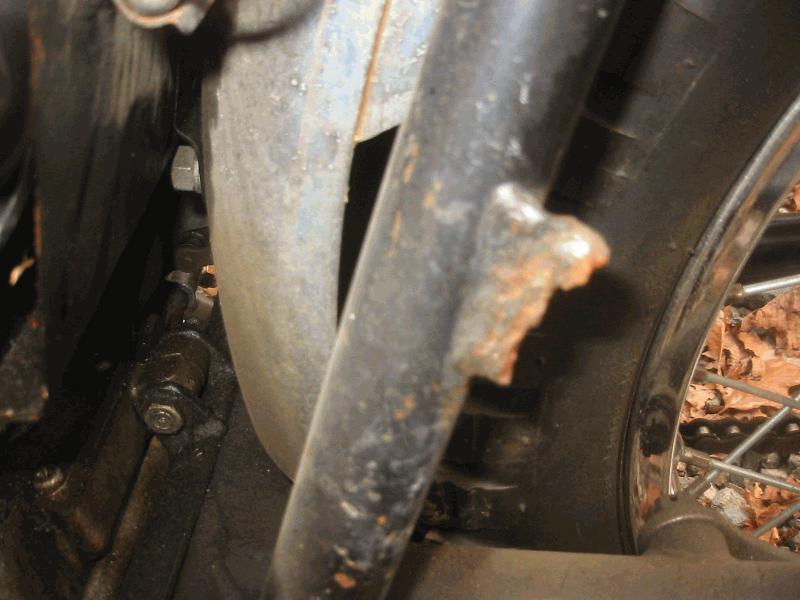

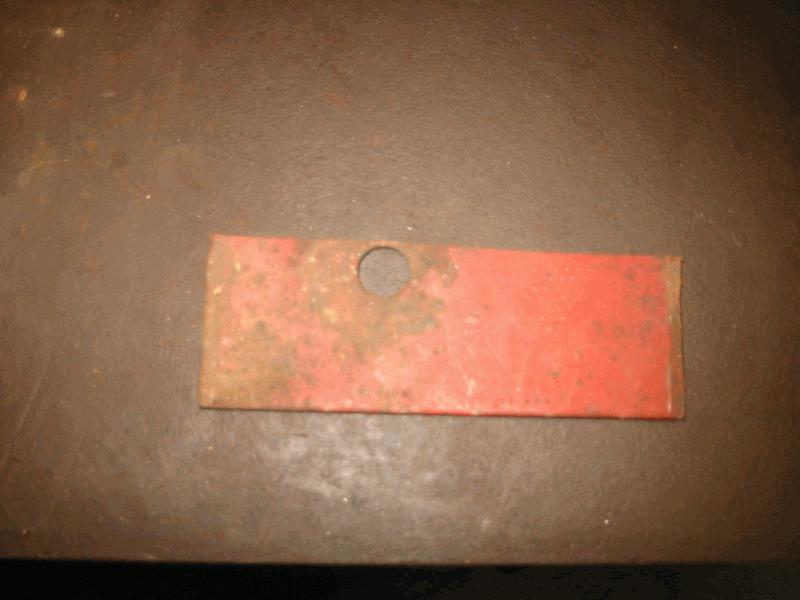

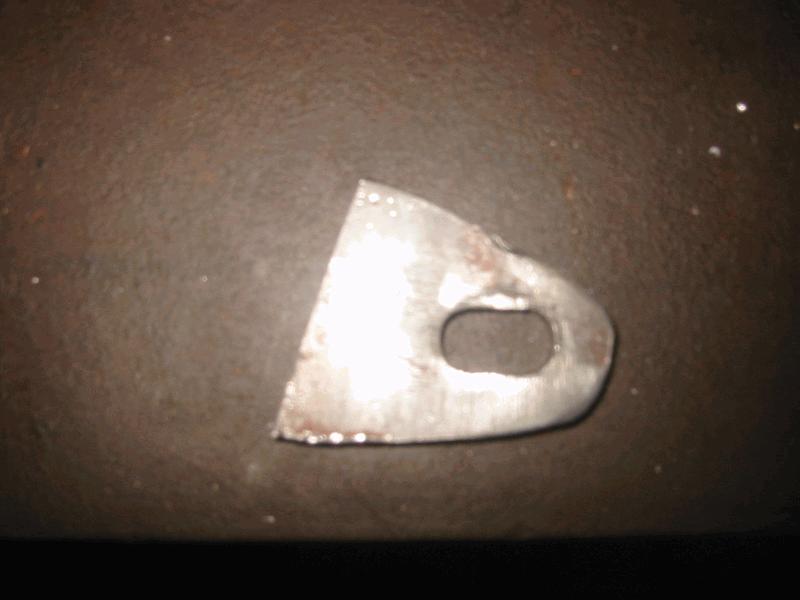

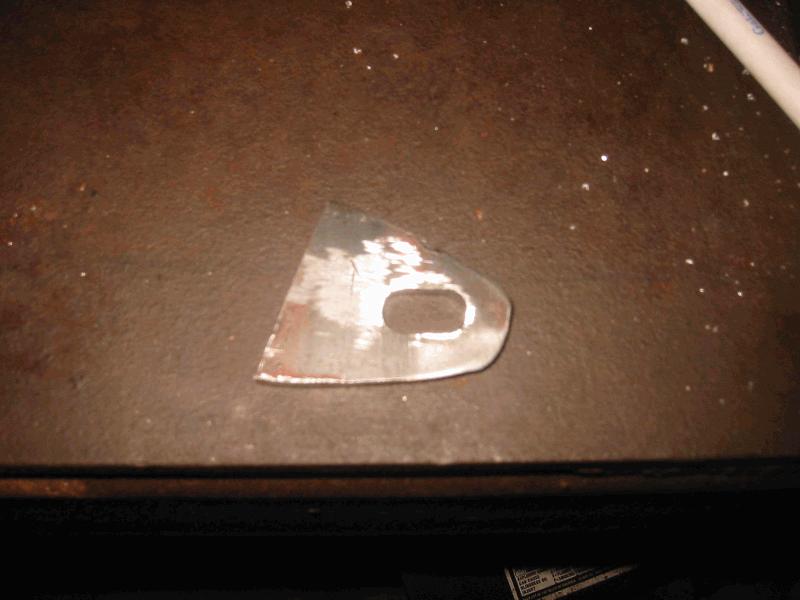

Before, pistons were stuck with surface rust in the cylinder, not that bad, honed cylinders lightly to clean it up.Before, pistons were stuck with surface rust in the cylinder, not that bad, honed cylinders lightly to clean it up.Muffler mount busted on left side, need to fabricate a new mount.Muffler mount busted on left side, need to fabricate a new mount.Metal found for new bracketMetal found for new bracketRough grinding, bastard file on hole slot.Rough grinding, bastard file on hole slot.Piece cust, holes drilledPiece cust, holes drilled

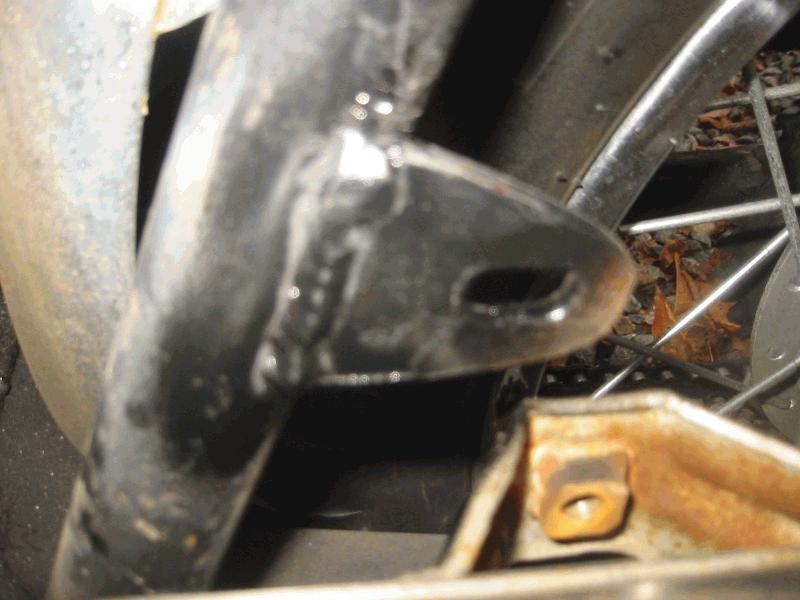

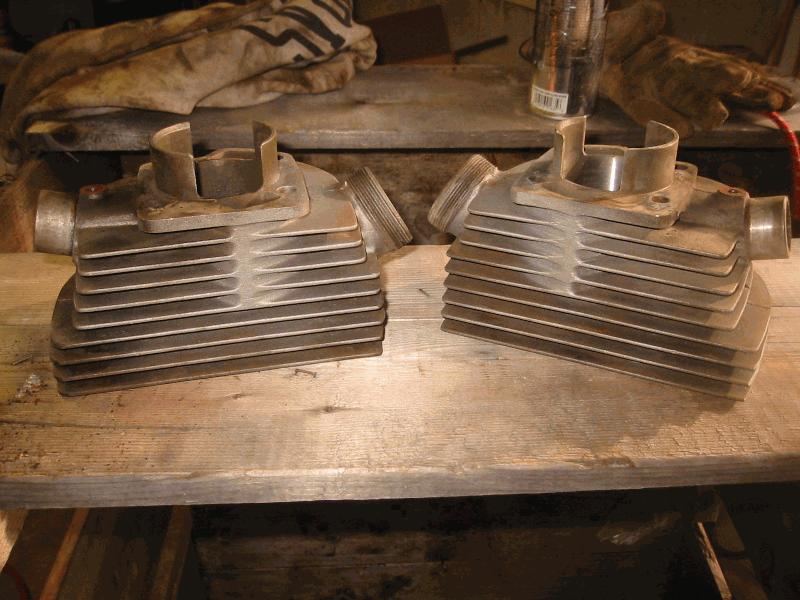

Mig welded on Frame.Mig welded on Frame.Cylinders sandblastedCylinders sandblastedCylinders Painted, new rings put on bike.Cylinders Painted, new rings put on bike.

Restoration Journal

Work completed, time invested, expenses, and lessons learned.

Got Started

Date not recorded
Hours spent2.0
Recorded cost$0.00
Work performed / notes

Found this bike on craigslist. It was in decent shape, engine was locked, but the chrome looked good.

Unstuck and New rings.

Date not recorded
Hours spent4.0
Recorded cost$1.00
Work performed / notes

<p>Took the head off and the cylinders looked ok, a little bit of surface rust but WD40 fixed that. Pistons came out with a small tap with the wooden end of a hammer. Honed the cylinders and added new rings. </p>

2 work entries6.0 total hours$1.00 recorded costs
To Do Entries
Total Cost: $1.00    Total Hours: 6
